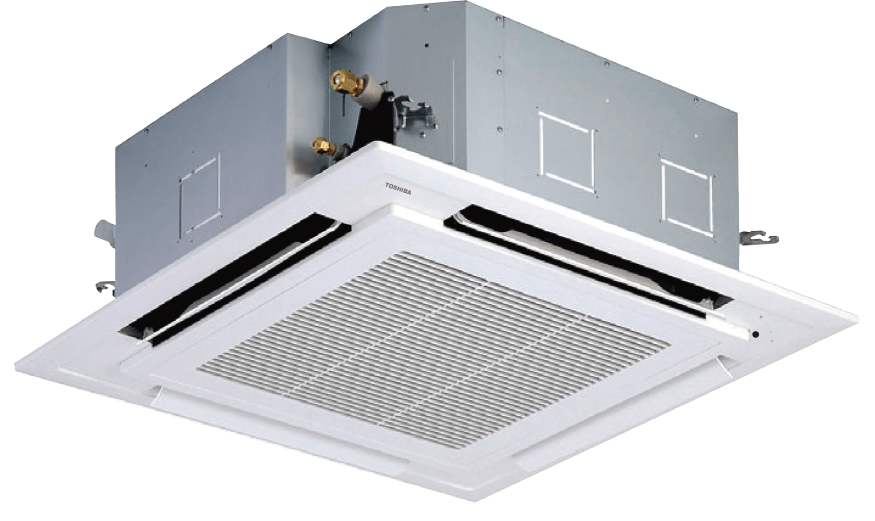

4-Way Cassette (Inverter)

RAV-SH_UP-AE

Toshiba’s Light commercial 4-way cassette unit is dedicated for commercial application. This unit is the perfect mix between comfort, elegance and efficiency

Highlights

Outstanding efficiency
Magic Coil Technology
External fresh air supply possible
Fireproof Electrical Enclosure

Indoor units

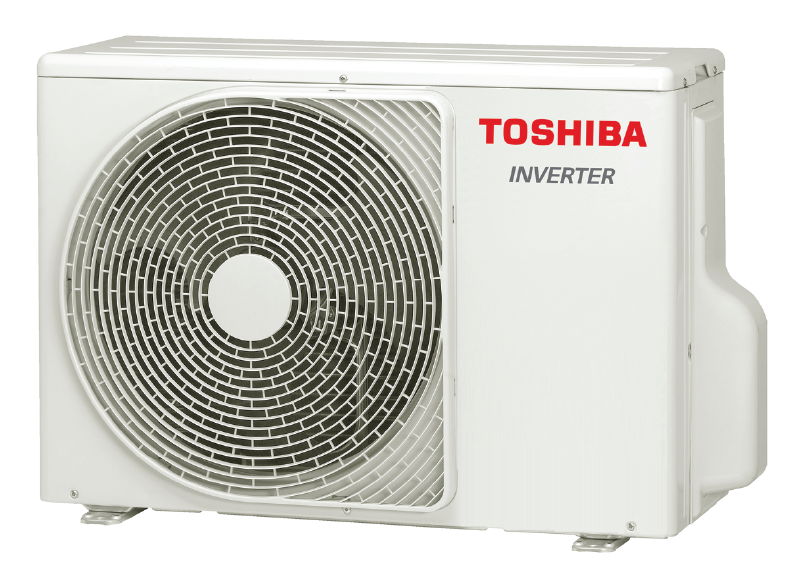

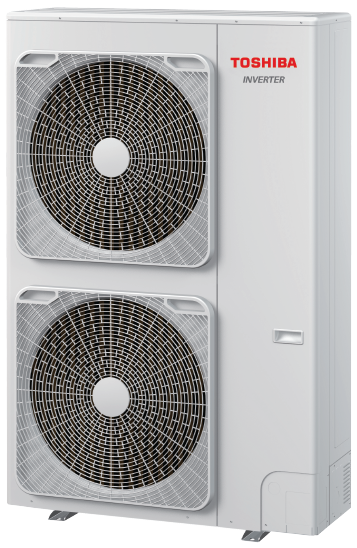

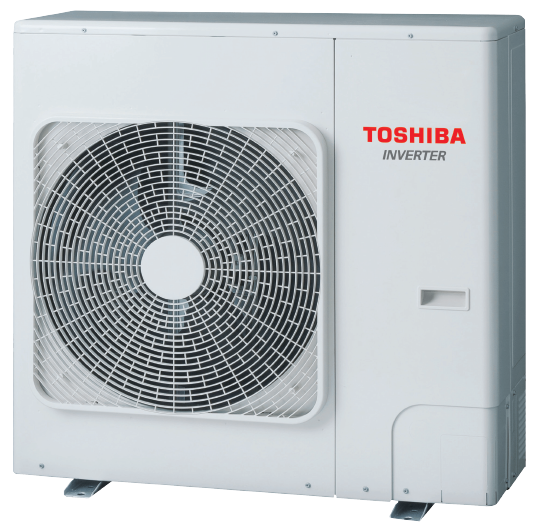

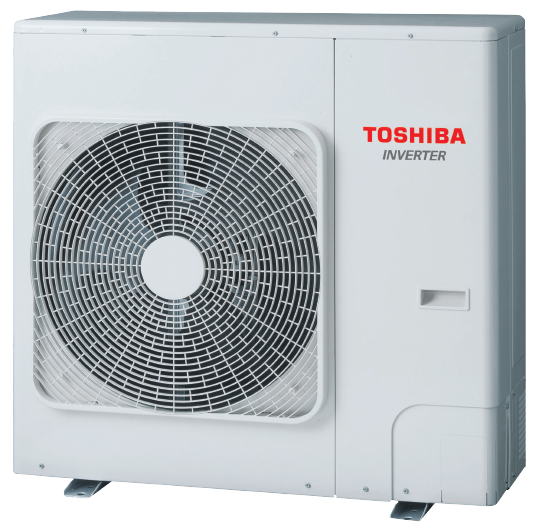

Outdoor units

High Efficiency: Toshiba’s 4-way inverter cassette integrates advanced energy-saving technologies designed to enhance operational efficiency and reduce energy costs.
Magic Coil Technology: This innovative coil design ensures sustained energy efficiency by using condensation water to flush away oil and dirt, thereby maintaining an optimal heat transfer rate.
High-Efficiency DC Fan Motor: The system utilizes a high-efficiency DC fan motor, optimized to work seamlessly with the fan and heat exchanger, resulting in superior energy performance.
Extended Heat Exchanger Slits: The long slits of the heat exchanger enhance airflow mixing, significantly improving the heat transfer rate for better overall efficiency.
Compact Design: With a slim height of just 256mm, the unit offers exceptional installation flexibility, accommodating a wide range of spaces.
Fireproof Electrical Enclosure: Both indoor and outdoor units feature fully fireproof electrical enclosures, providing enhanced safety by preventing the spread of fire, explosions, or electrical burns.

Twin Rotary Compressor: The unique twin rotary compressor, paired with all-inverter-driven control and R410A refrigerant, ensures precise performance, reflecting Toshiba’s commitment to flawless Japanese engineering.
Wide Operating Range: Designed for the Middle Eastern climate, the Light Commercial Inverter operates efficiently over a broad temperature range.
Protection Circuit: It features a protection circuit that safeguards the PC board during unstable power supply conditions, along with a detection function for power-supply miswiring in 3-phase products.
Noise Filter: Equipped with a noise filter, the system prevents voltage fluctuations, allowing the air conditioner to operate smoothly and deliver consistent, reliable performance.
Thunder Surge Protection: A surge absorber protects the entire PCB from high-current surges, such as those caused by lightning, handling voltages of up to 10,000V.
Fireproof Electrical Enclosure: Both indoor and outdoor units are housed in fully fireproof enclosures, ensuring safety by preventing fire, explosion, or burn risks.
