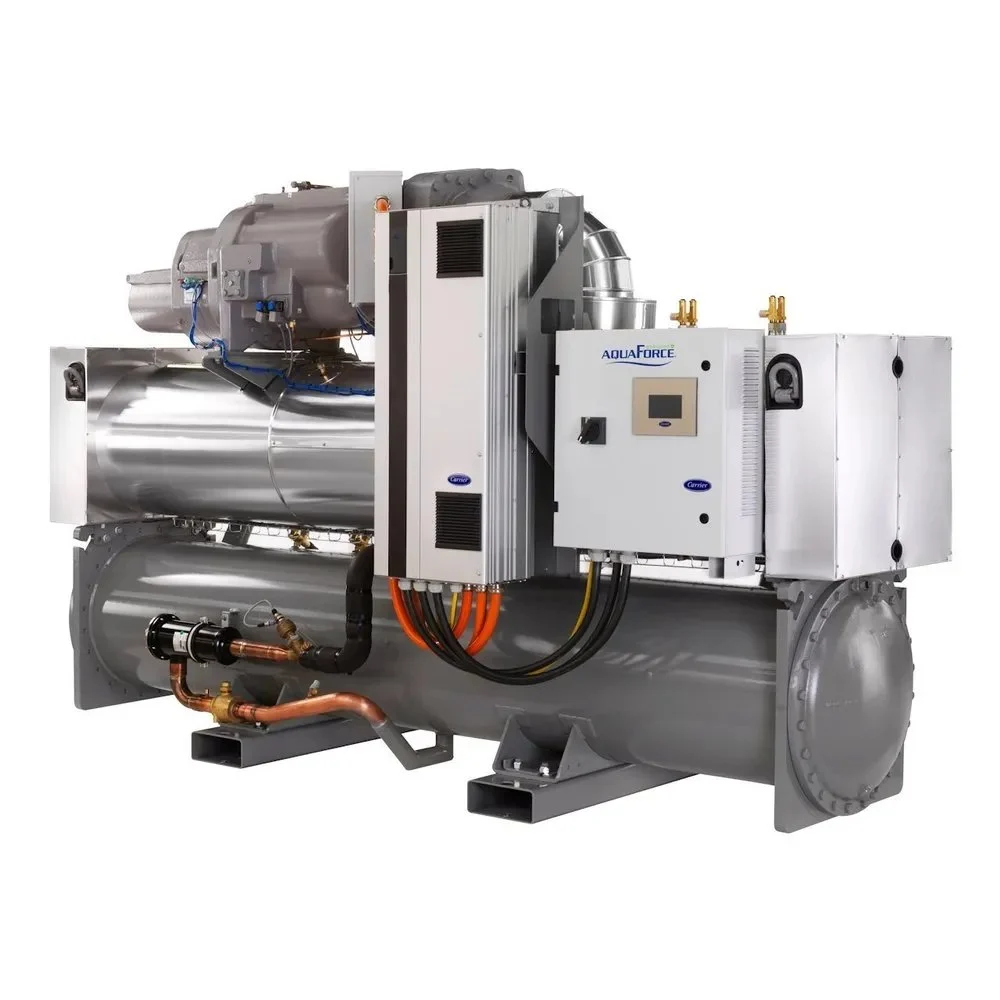

Carrier 30XW‑V MOD – AquaForce® Variable‑Speed Water‑Cooled Screw Chiller
High‑efficiency variable‑speed water‑cooled screw chiller using R‑134a refrigerant, delivering 590 to 1,740 kW, designed for outstanding part‑load performance, low sound levels, and sustainable green‑building applications.
The 30XW‑V is equipped with Carrier Touch Pilot® control, providing advanced system management, diagnostics, and energy optimization.
Key control features include:
7‑inch color touchscreen
Intuitive, user‑friendly interface
Direct access to:
Unit technical drawings
Main service documents
Clear screenshots and multilingual display
Customizable menus for different user roles
Password‑protected access for secure operation
Continuous monitoring of all machine parameters
Integrated energy management
Ethernet‑based remote access via PC
RS485 serial port for monitoring, diagnostics, and control
Optional communication gateways for BMS integration
Remote commands and visualizations include:
Start / Stop
Dual set‑point management (e.g. occupied / unoccupied)
Demand limit setting
Condenser pump control (flow verification via digital input)
Operating status visualization
Alarm visualization
| Document Name | Description | Document Type | Language | Action |
|---|---|---|---|---|
| Product Selection Data | 30XW-V_EN_PSD-Short_02-2025_13473 Product Selection Data (PSD) short version | English | Download |

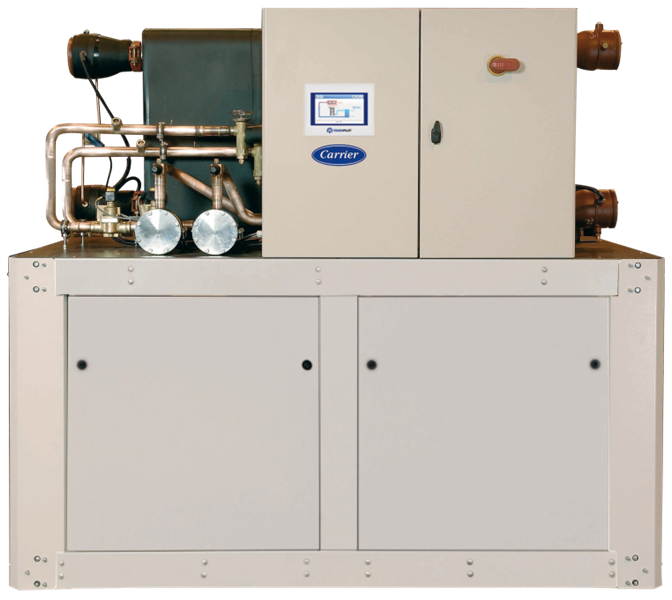

The new generation of AQUASNAP 30WI water-cooled heat pumps and water chillers offers an optimal solution for all heating processes or cooling applications. These units are designed to be installed in machine rooms that are protected against freezing temperatures and inclement weather.
The 30WG/30WGA units are new Carrier chillers and heat pumps designed for commercial (offices, small hotels, leisure facilities), residential and industrial applications. All units offer a unique combination of high performance and functionality in an exceptionally compact chassis.
The 30XWHV water-sourced units are the premium solution for commercial and industrial applications where installers, consultants and building owners require maximum quality and optimal performances, especially at part load.
The 30XWHV water-sourced units are the premium solution for commercial and industrial applications where installers, consultants and building owners require maximum quality and optimal performances, especially at part load.
The 30XW_P liquid chillers are the premium solution for industrial and commercial applications where installers, consultants, and building owners require optimal performance and maximum quality.
The 23XRV chiller is the world’s first integrated variable-speed, water-cooled, screw chiller. The 23XRV incorporates significant breakthroughs in water-cooled chiller technology to provide excellent reliability and achieve superior efficiency at true operating conditions without compromising the environment. Quality design and construction make the AquaEdge® 23XRV chillers the best choice for modern, efficient chilled water plants.
