39HXA

39HXA
Thumbnail 1

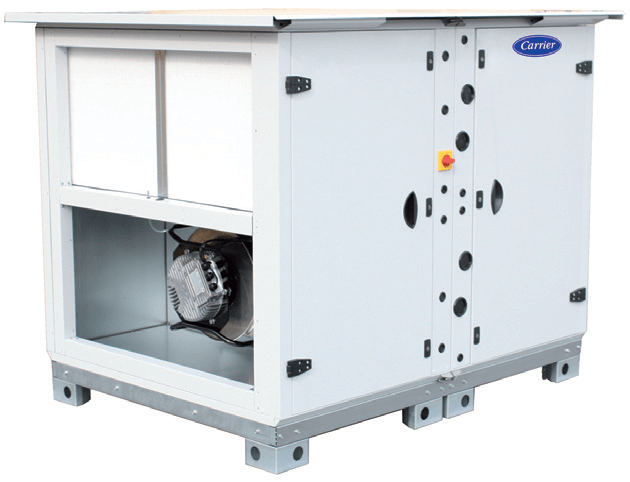

Thumbnail 2

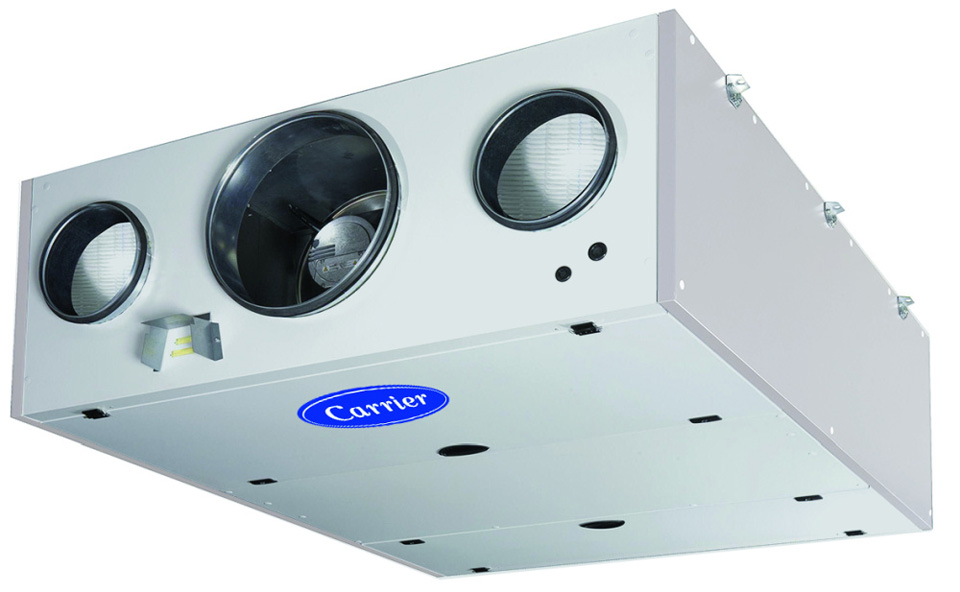

Thumbnail 3

39HXA

The 39HX dual-flow air handling unit is a PLUG & PLAY ventilation unit equipped with a highly efficient heat recovery unit with plug fans and high performance EC motors, designed to meet all the requirements of recent ecodesign regulations. These units are designed for use in the following applications: administrative buildings, offices, education facilities, libraries, community centers, cafes, hotels, restaurants, shopping centers, nursing homes, healthcare facilities and collective housing.

Features

  • Casing

    Double-skin panels made from sheet steel, galvanized on both sides, thickness 8/10 mm RAL 7035 grey precoated external panels Class M0/A1 Mineral wool, 50 mm thick

  • Filtration

    M5 HEE, F7 HEE, F9 HEE filters Filter cells kept compressed by a special system to ensure a leaktight seal HXC, HXV models: fouling value monitored by analogue sensor and displayed by controller HXA model: pressure switch control on each air flow. Pressure switch status displayed by controller

  • Ventilation

    Plug fan driven by an electronically commutated motor (EC motor, built-in variable speed control)

  • Heat recovery units

    "Contra Flow" plate heat exchanger equipped with a motorized bypass (HXC and HXV models). Efficiency greater than 80% across the range of air flows Rotary heat exchanger equipped with rotation variable speed control (39HXE model). Efficiency > 80% at nominal flow rate Constant speed rotary heat exchanger (HXA model). Efficiency greater > 80% at nominal flow rate

  • Hydraulic coil

    Copper pipes, aluminum fins Coil can be integrated or additional (cased) With the accessory fitted, 2- or 3-way control valve and 0-10 V actuator controlled by 39HX Control for set-point accuracy Stainless steel condensate drain pan (cooling coil or mixed coil only)

  • Electric heaters

    High-limit safety thermostat with automatic and manual reset Control by 2-stage on/off operation fully controlled by 39HX Control

  • DX coil

    Copper tubes, aluminum fins For reversible heating/cooling operation Internal space optimized for VRV units Stainless steel condensate drain pan

  • Electrics box

    Electrics box for power, control and internal regulation of the unit

Technical Documents

Document Name Description Document Type Language Action
39HXA Brochure PDF English Download
